Tonko´s Radiosammlung - Geräte vor 1945

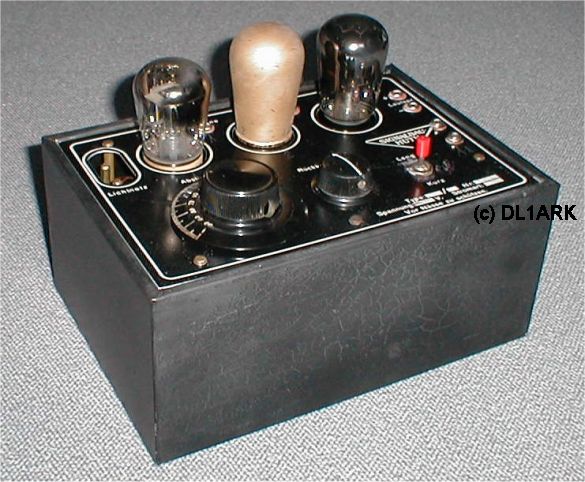

Signalbau Huth, "E 72 W"
Empfangsprinzip:
Einkreiser mit Rückkopplung |
receiving principle:
audion / linear RF amplification |
Kreise: 1/1 |
circuits: 1/1 |
Röhrenbestückung:
REN 904, RE 134, RGN 354 |
tube line-up:
REN 904, RE 134, RGN 354 |
Spannung (V): AC
110/220 |
power (V): ac 110/220 |
Gehäuse: Metall |
case: metal sheet |
Wellenbereiche: MW, LW |
ranges: mw, lw |
Besonderheiten: |
features: |
Baujahr: 1927/28 |
year of manufacture: 1927/28 |
Seriennummer: 6833 |
serial number : 6833 |
Zustand elektr.: 1,
betriebsbereit |
electr. condition: 1,
ready |
Zustand mechan: 2,
original/restauriert |
phys. condition: 2,
original/restored |
Bemerkungen:
Größe, 260 x 160 x 180mm,
Das Gerät befindet sich nach der Restaurierung in einem allgemein gutem
Zustand. |
remarks:
size 10,3" x 6,4" x 7,2"
The device is after the restoration in a generally good status.
|

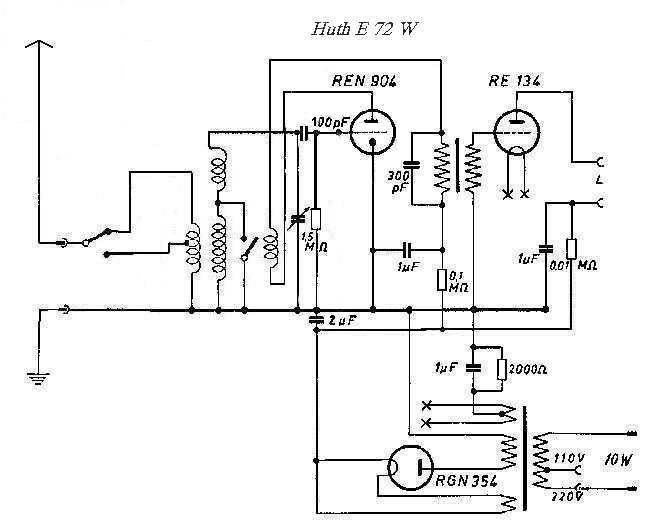

Stromlaufplan/schematic diagram: |
E72-W |

...

|
